Sale!

Dev-Square™

৳ 1,000.00 – ৳ 2,150.00

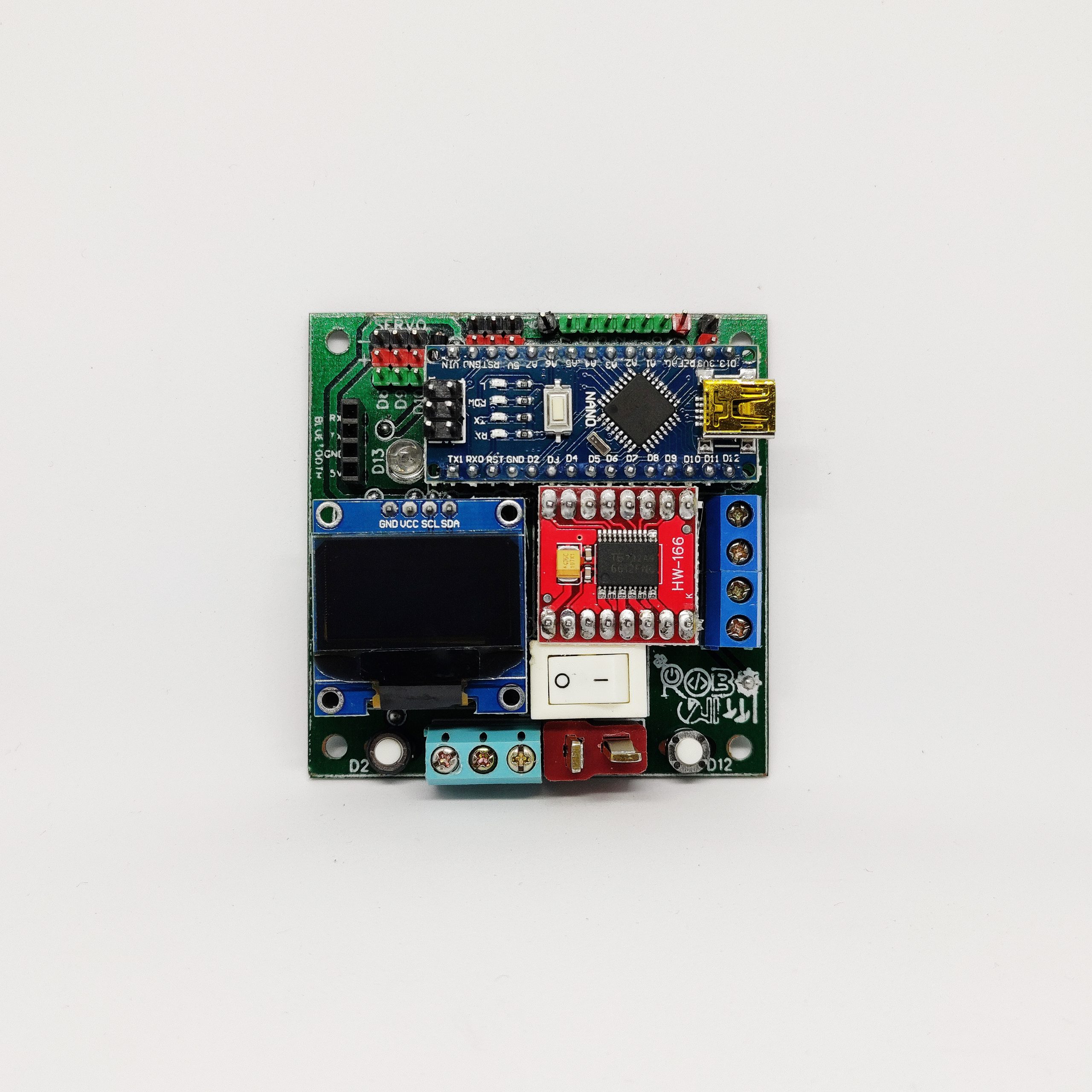

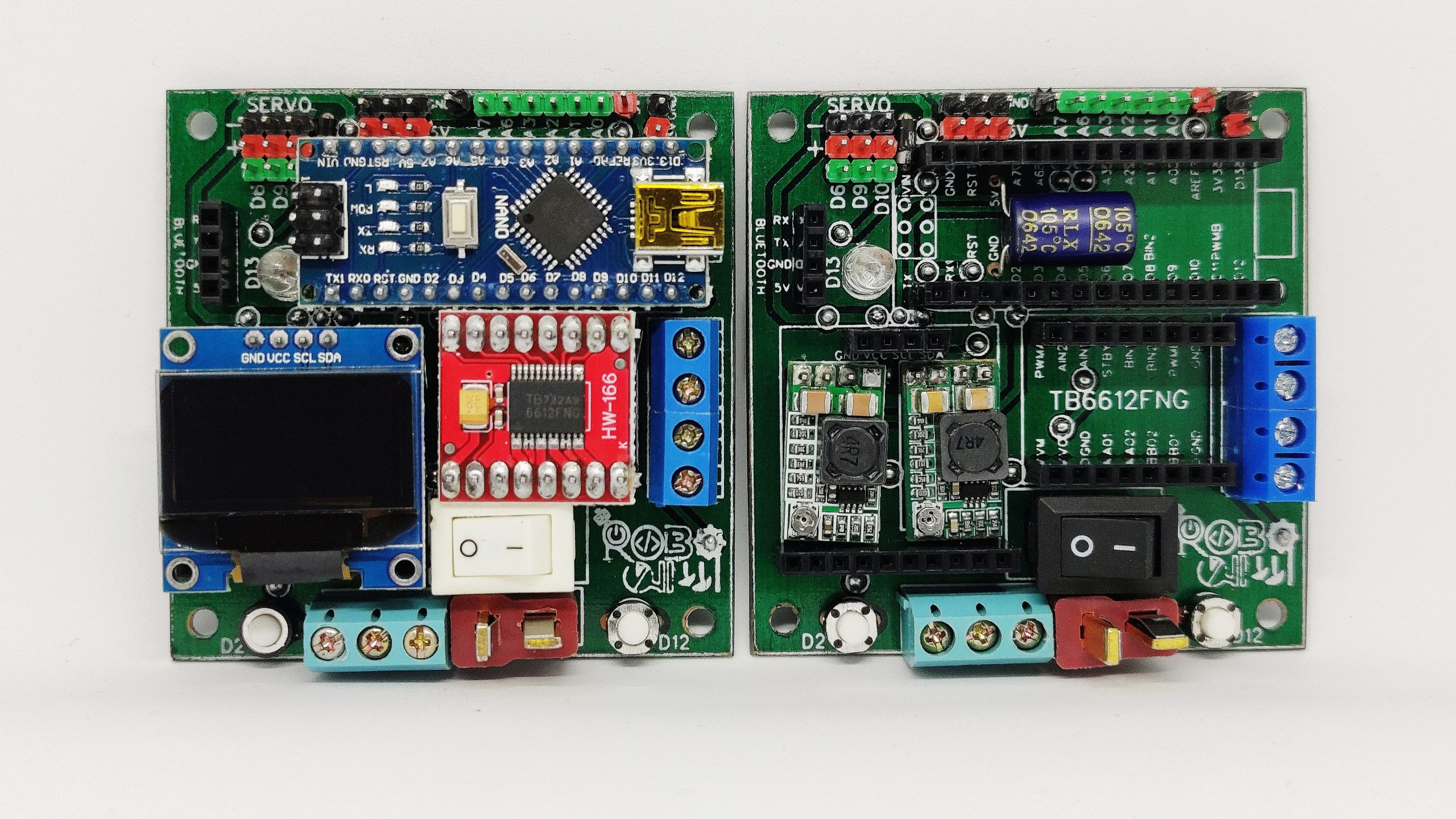

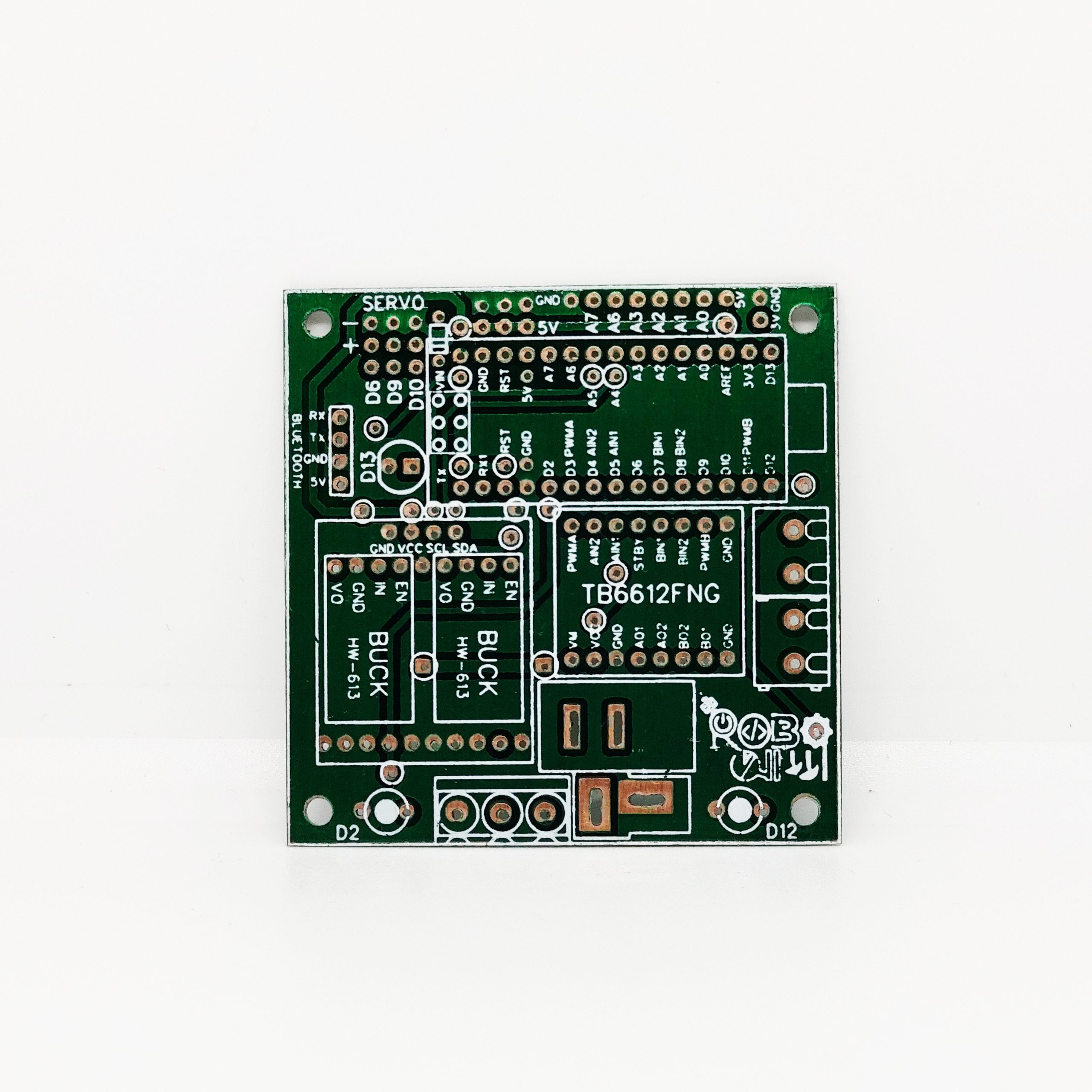

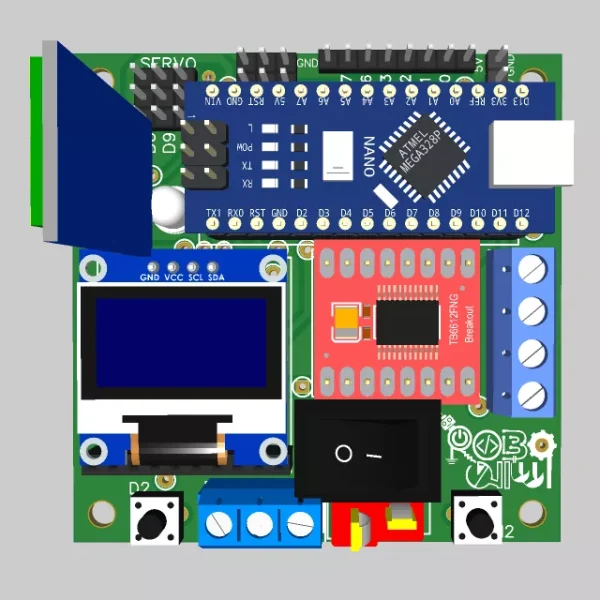

A Multifunctional Arduino Kit which can reduce your hassle to build a mobile prototype!

SKU: N/A Categories: , ,

Description

Key Features:

  • Fully modular
  • 5 major components
  • 3 individual servo operations
  • Dedicated power system for servo motors
  • Extra 5V and 3.3V power line
  • IR Sensor Connection pin
  • Easy motor connection
  • Dedicated boost module connection
  • Easy battery inserts (T connector)
  • Kill Switch
  • Debugging LED
  • Push Button for various function
  • Screw hole for body mounting

Technical Information:

MAXIMUM INPUT VOLTAGE: 24V

MAXIMUM MOTOR CURRENT: 1.2A per motor

MAXIMUM SERVO CURRENT: 1A in total

MAXIMUM CURRENT OF ADDITIONAL 5V POWER LINE: 2A

MAXIMUM CURRENT OF ADDITIONAL 3V POWER LINE: 500mA



Additional information

Arduino Nano

With Arduino Nano, Without Arduino Nano
0.96" OLED Display

with Display, without Display
TB6612FNG Motor Driver

with Motor Driver, without Motor Driver
